1. Product Overview

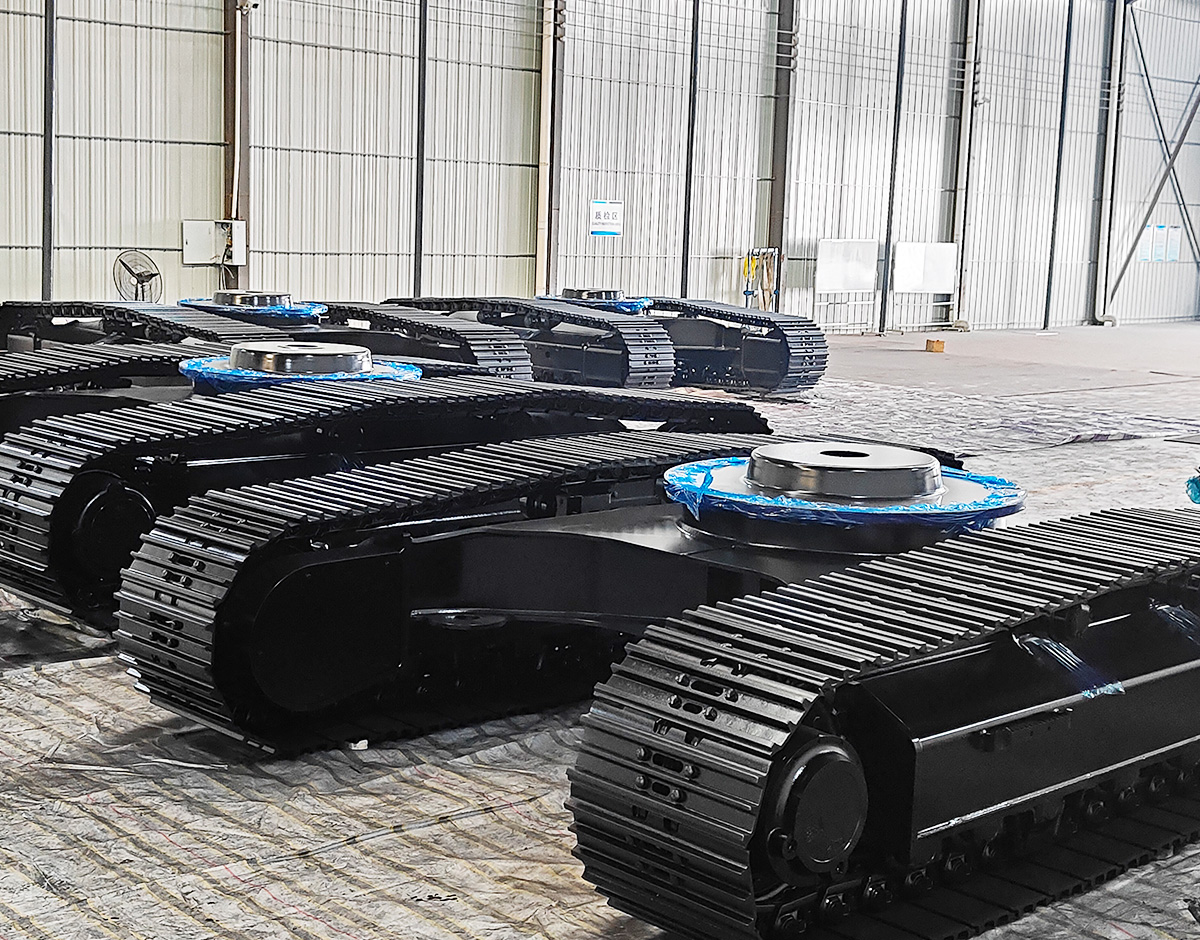

The MAGEON 1-60 ton customized steel track undercarriage is a heavy-duty crawler chassis integrated with a slewing bearing rotary system, specially designed for crawler machinery that requires 360° rotation of the upper structure in confined spaces or complex working conditions. The product features a high-strength steel structure with Q345B material for the beam, offering strong load capacity and adaptability to drilling rigs, crushers, excavators, piling machines, lifting equipment, and other crawler machinery.

2. Design Highlights

Integrated Slewing Bearing — 360° Flexible Rotation
The undercarriage integrates a high-capacity slewing bearing, enabling the upper structure to rotate 360° relative to the chassis. This meets the operational needs of equipment in confined spaces and complex conditions, improving flexibility and efficiency of position adjustment.

High-Strength Steel Structure — Heavy-Duty Load Capacity
The chassis beam is made of Q345B high-strength steel. The overall structure is optimized for excellent load capacity and torsional rigidity, capable of supporting machine weights from 1 to 60 tons.

Modular Design — Customized as Needed
Adopting a modular design concept, the undercarriage can be customized according to machine weight, mounting dimensions, slewing torque, travel speed, and operating conditions. Hydraulic, electric, and mechanical drive configurations are available.

Complete Travel Assembly — One-Stop Solution

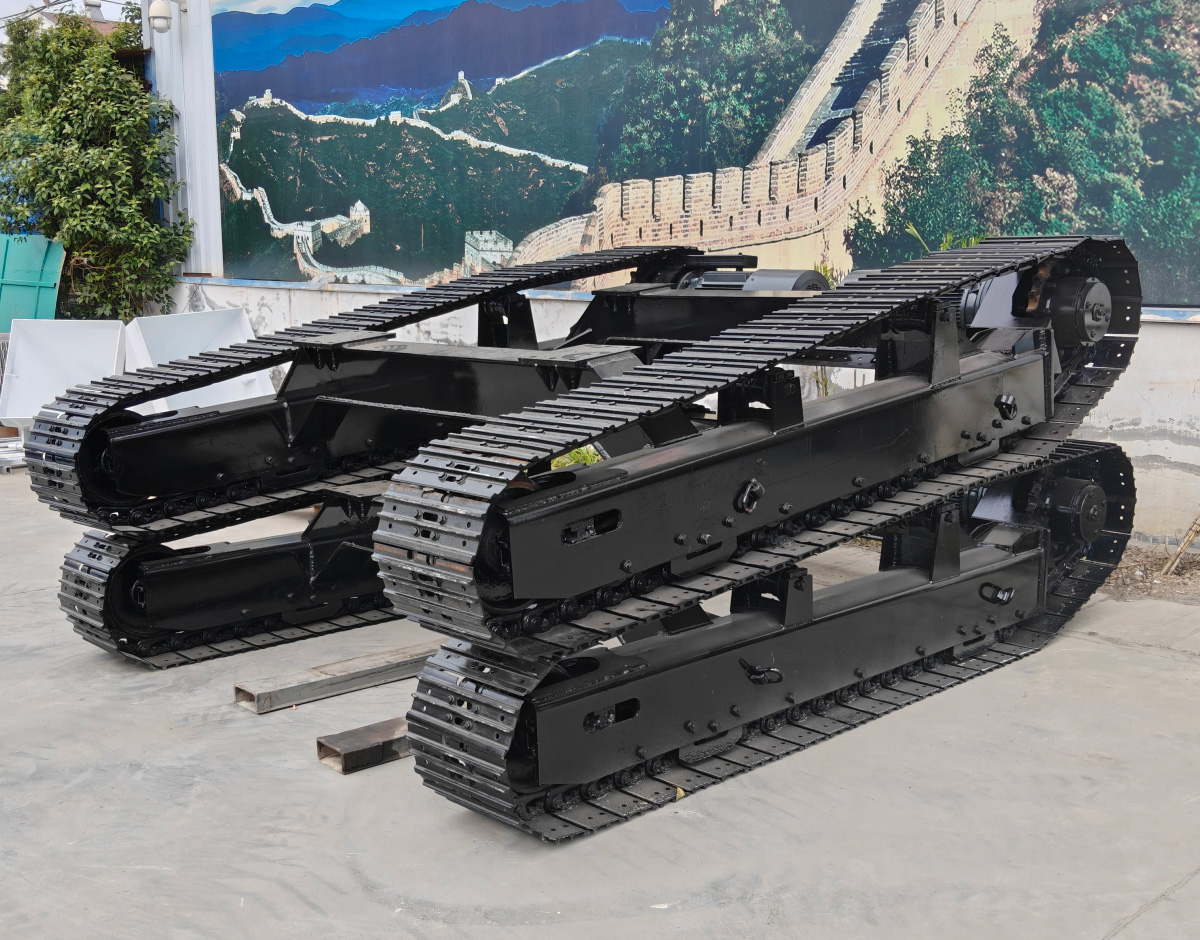

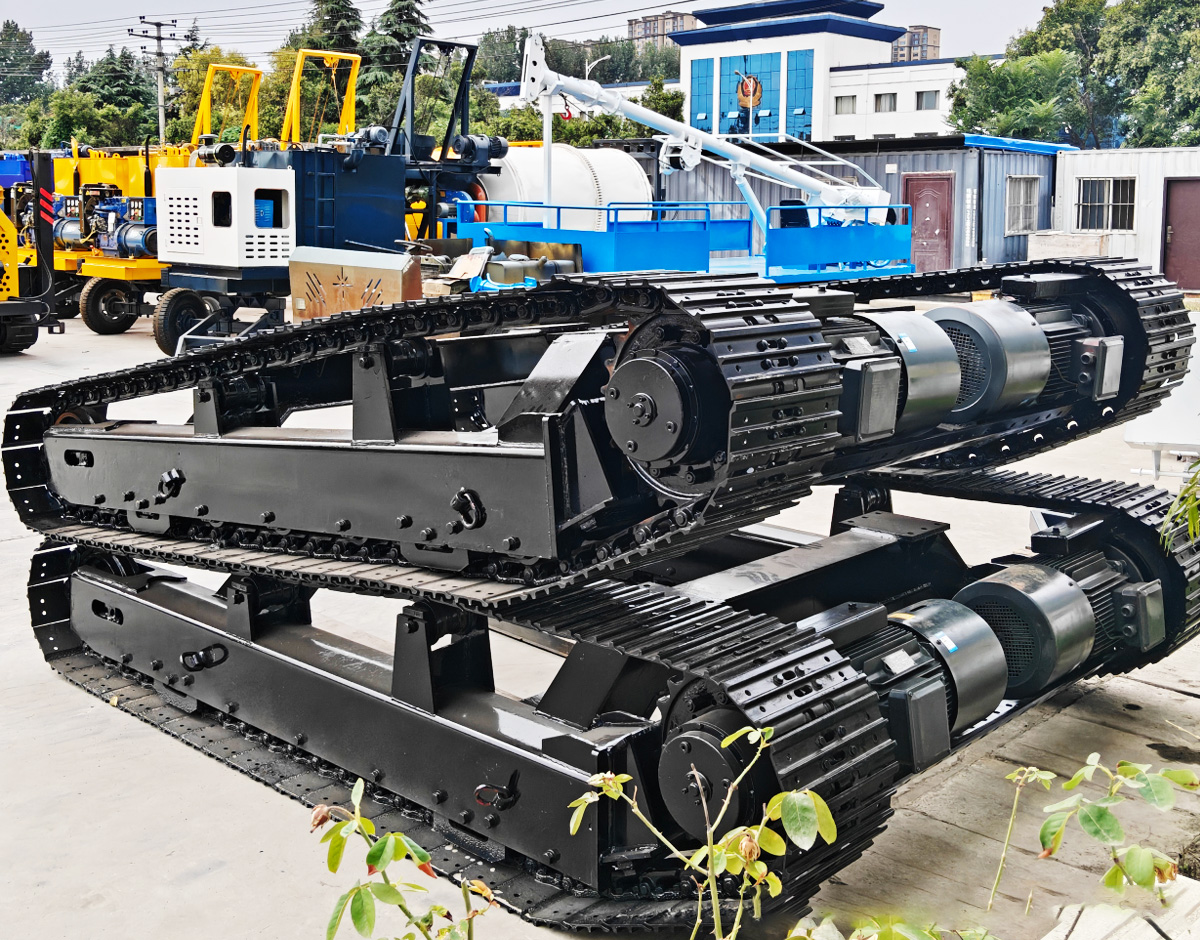

A complete undercarriage assembly is provided, including steel tracks, track links, track rollers, front idlers, drive sprockets, hydraulic motors, travel gearboxes, crossbeams, and other components, ensuring system compatibility and reliability.

3. Undercarriage Structure

4. Application Scenarios

The product is widely used in the following fields:

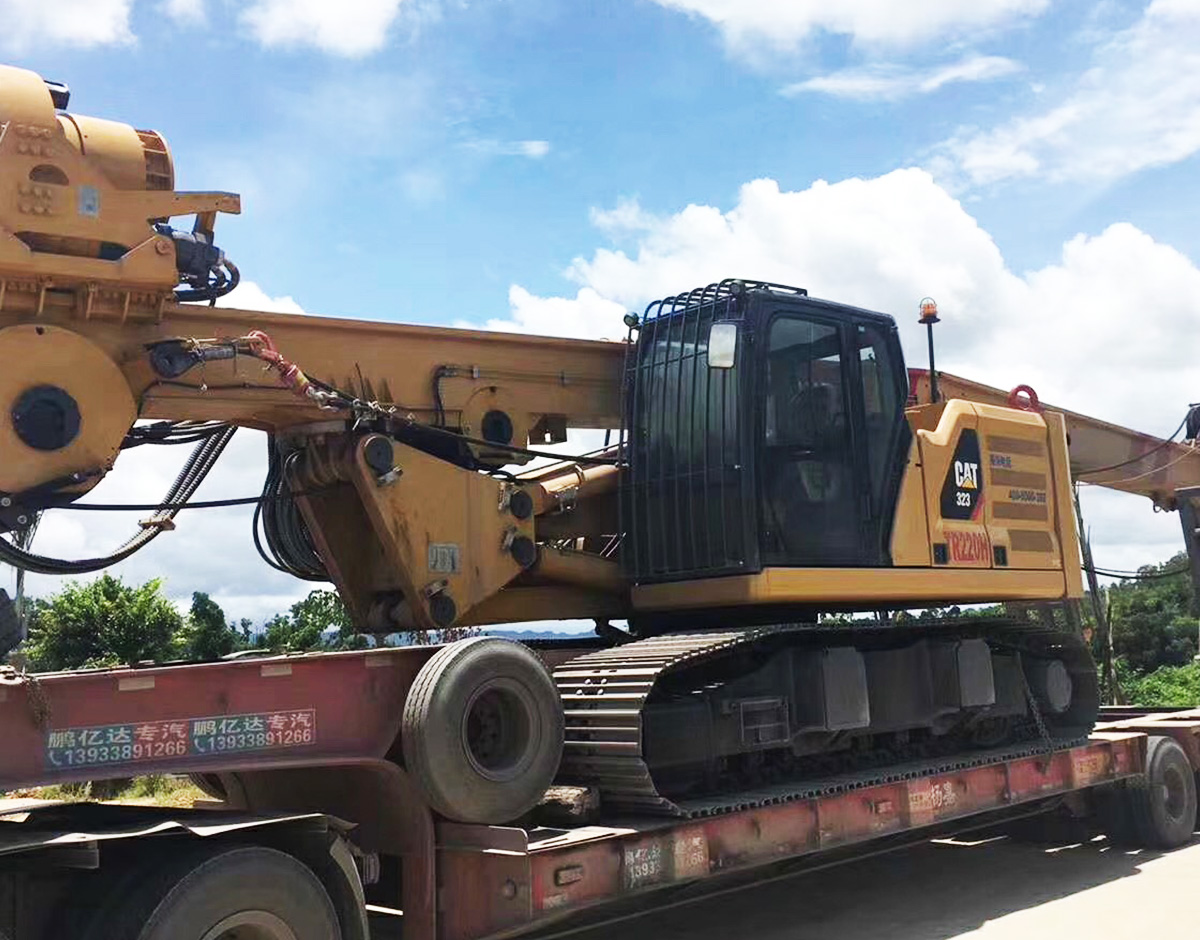

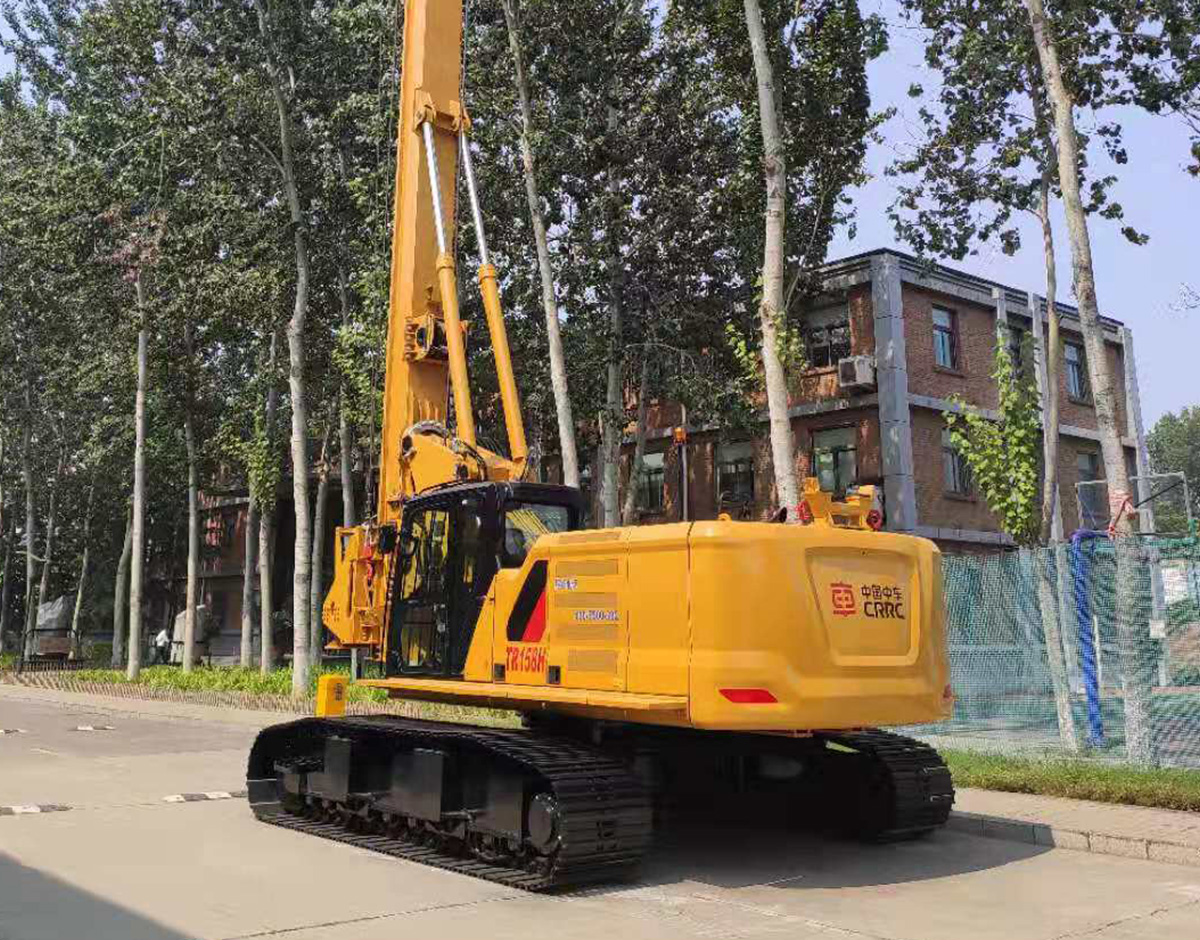

• Drilling Rigs: Anchor rigs, water-well rigs, core drilling rigs, jet grouting rigs, down-the-hole drills, crawler hydraulic drilling rigs, pipe roof rigs, and other trenchless equipment

• Construction Machinery: Mini excavators, mini piling machines, exploration machines, aerial work platforms, small loading equipment

• Coal Mining: Grilled slag machines, tunnel drilling rigs, hydraulic drilling rigs, rock loading machines

• Mining: Mobile crushers, heading machines, transport equipment

• Others: Construction robots, lifting equipment, forestry machinery, agricultural machinery, etc.

5. Customization Service

MAGEON provides comprehensive customization services according to customer equipment requirements, including:

• Load Capacity: Customizable from 1 to 60 tons

• Track Width: 200–500 mm available

• Undercarriage Dimensions: Customized to machine mounting requirements

• Slewing Torque: Matched to upper structure weight and rotation requirements

• Drive Type: Hydraulic, electric, or mechanical options

• Travel Gearbox: Single-speed or dual-speed available

• Color: Black or custom color

6. Development Process

7. FAQ

Q1: What is the load capacity range of this undercarriage?
A: The load capacity ranges from 1 to 60 tons, customizable according to machine weight.

Q2: What is the function of the slewing bearing?

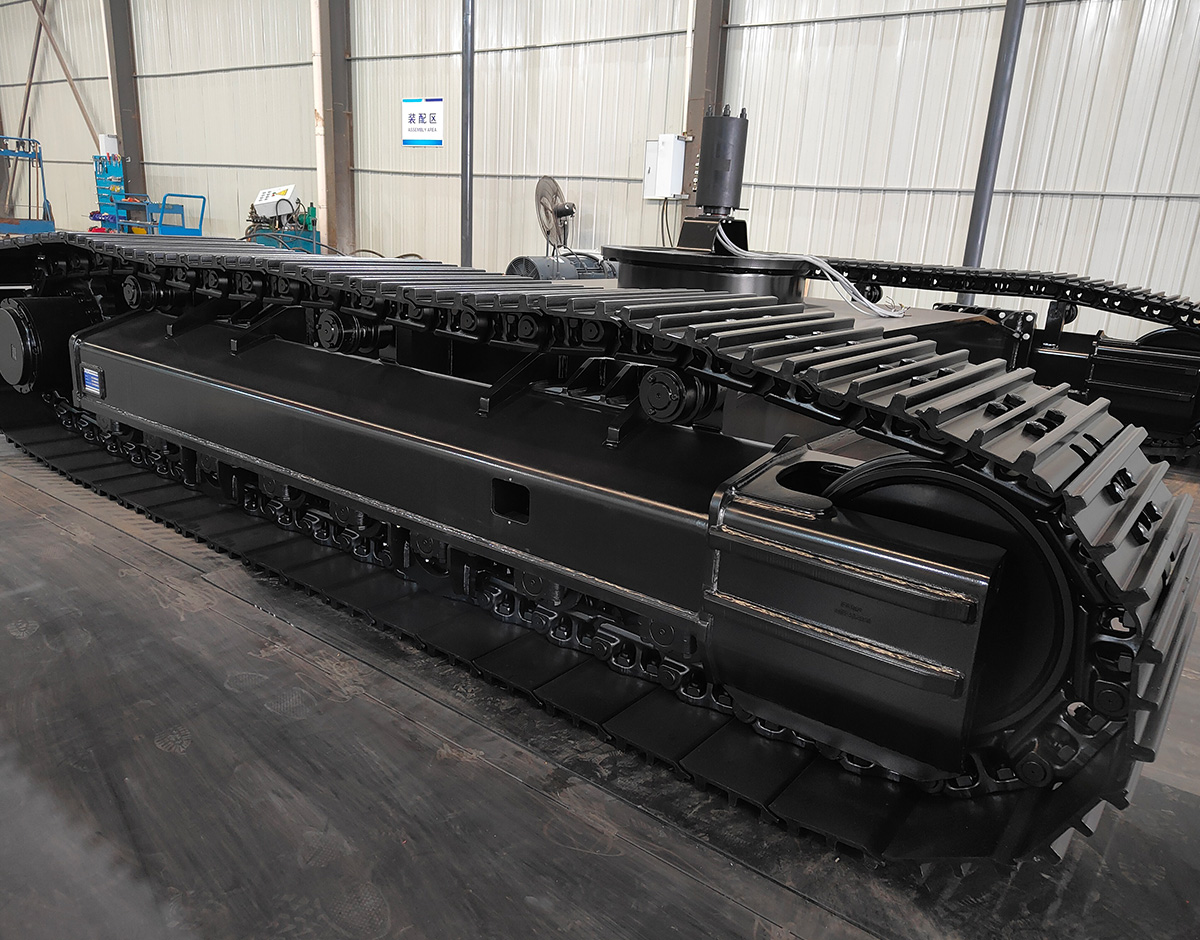

A: The slewing bearing is integrated in the center of the chassis, enabling the upper structure to rotate 360° relative to the chassis, allowing flexible position adjustment in confined spaces.

Q3: Can it be customized according to drawings?
A: Yes. MAGEON welcomes customer drawings of track undercarriages and can customize designs based on mounting dimensions, load capacity, climbing requirements, etc.

Q4: What components are included in the undercarriage?
A: A complete undercarriage assembly is provided, including steel tracks, track links, track rollers, front idlers, drive sprockets, hydraulic motors, travel gearboxes, crossbeams, and slewing bearing.

Q5: What is the warranty period?
A: 1 year or 1000 hours, whichever comes first.

Q6: What is the delivery time?
A: Estimated 20 days for 1 set, 30 days for 2-3 sets, and to be negotiated for more than 3 sets.
