1. Product Overview

The MAGEON 10-ton hydraulic drive rubber track undercarriage for excavators and bulldozers is a rubber track travel system designed for small and medium-sized crawler construction machinery. The load capacity covers 1 to 15 tons with a travelling speed of 0-2 km/h, and the undercarriage dimensions are 2250×300×535 mm. Using a rubber track structure, it provides sufficient traction while effectively reducing ground damage, making it suitable for equipment operating on paved surfaces or in conditions where ground protection is required.

2. Design Highlights

1-15 Ton Load Range — Suitable for Various Small and Medium Equipment
The load capacity covers 1 to 15 tons and can be matched to machine weight and load distribution. It is suitable for excavators, bulldozers, drilling rigs, piling machines, mobile crushers, and other small and medium crawler construction machinery.

Rubber Tracks — Traction and Ground Protection

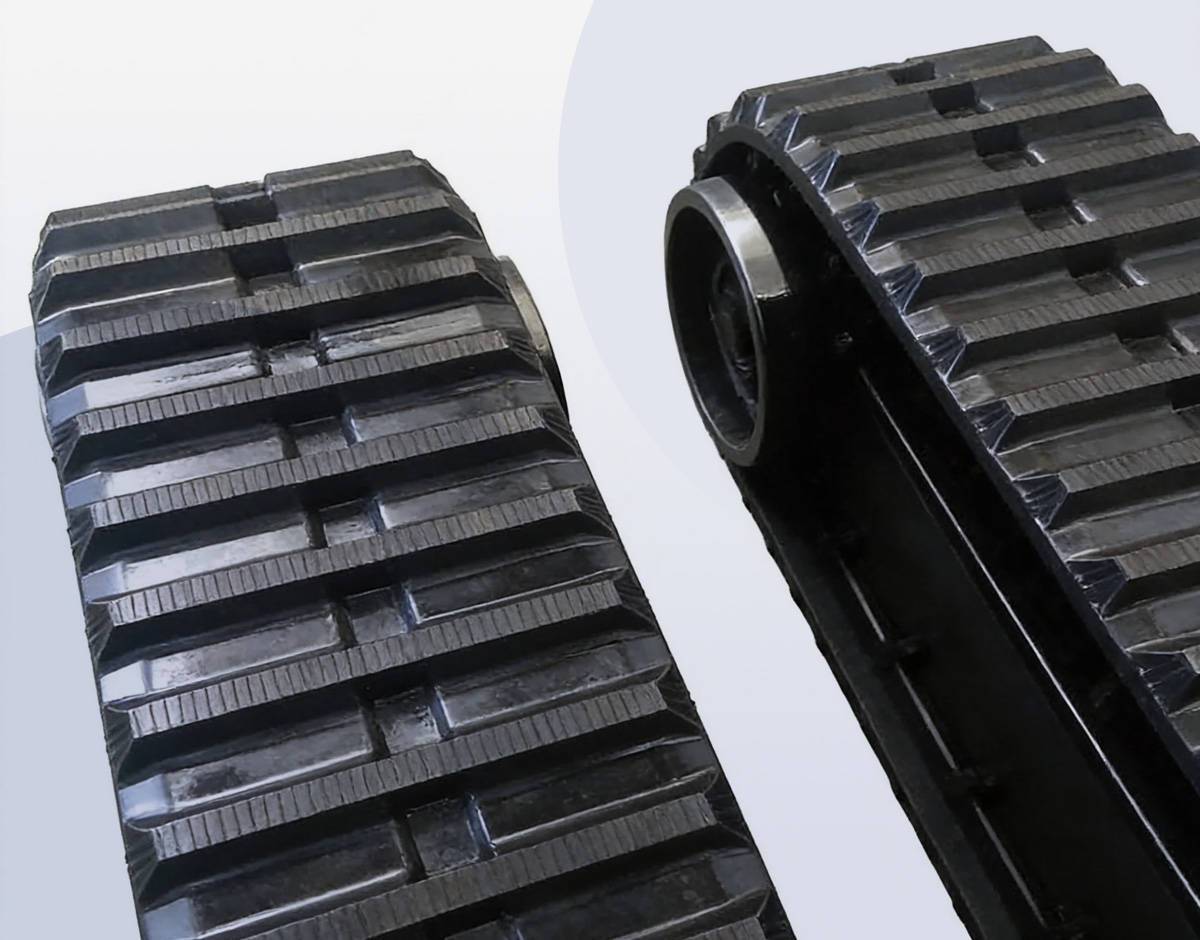

The rubber track structure provides stable traction while effectively reducing scraping and indentation on asphalt, concrete, and other paved surfaces. It is suitable for equipment requiring frequent relocation or operation in urban roads and construction sites.

Hydraulic Drive — Smooth and Controllable Travel Power
The undercarriage uses a hydraulic drive system with a travelling speed of 0-2 km/h. It can be matched to the customer's hydraulic system parameters to ensure smooth travel and controllable start/stop.

Compact Structure — 2250×300×535 mm
With undercarriage dimensions of 2250×300×535 mm (L×W×H), the compact structure is suitable for space-constrained operations. It can be matched with mini excavators, mini piling machines, drilling rigs, and other equipment.

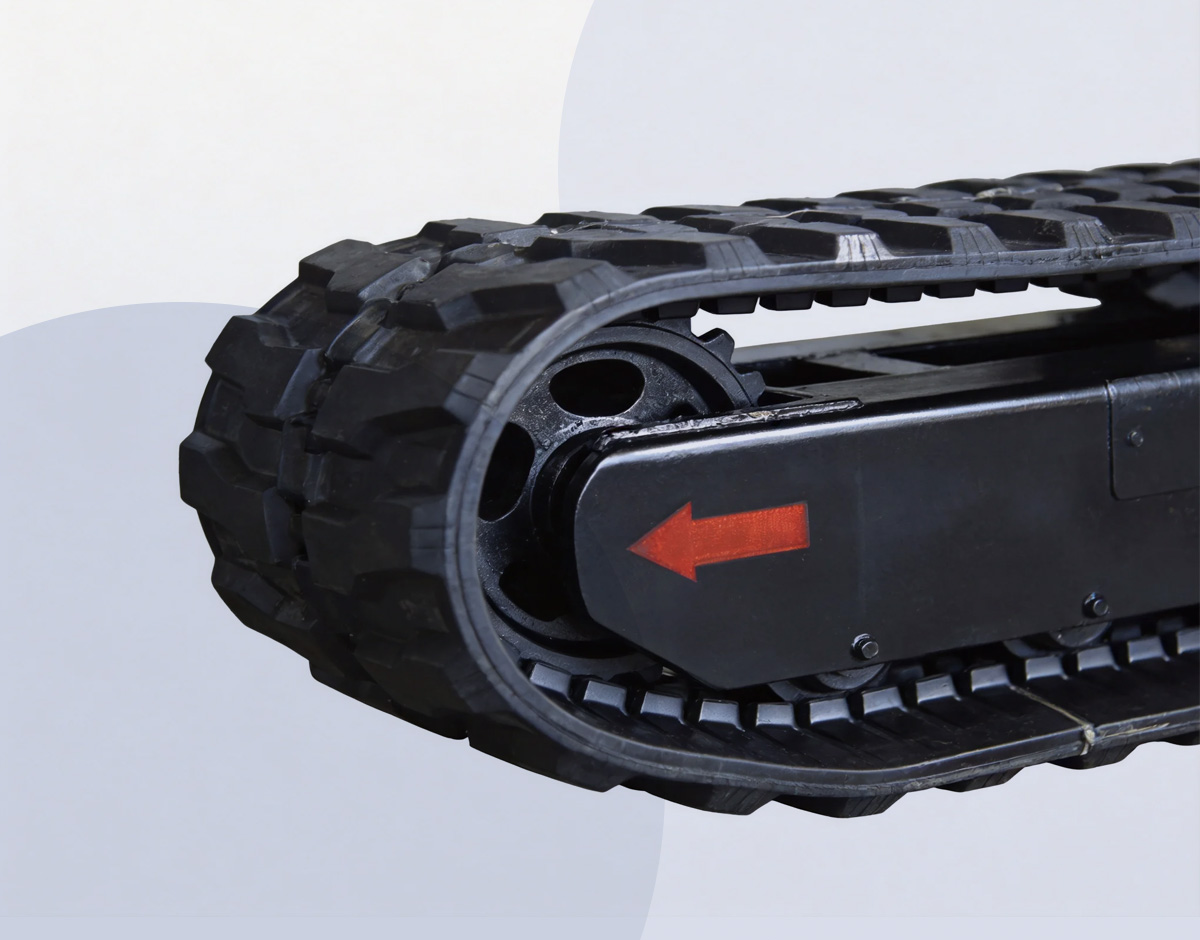

3. Undercarriage Structure

4. Application Scenarios

Drilling Rigs: Anchor rigs, water-well rigs, core drilling rigs, jet grouting rigs, down-the-hole drills, crawler hydraulic drilling rigs, pipe roof rigs, and other trenchless equipment.

Construction Machinery: Mini excavators, mini bulldozers, mini piling machines, exploration machines, aerial work platforms, small loading equipment.

Coal Mining: Grilled slag machines, tunnel drilling rigs, hydraulic drilling rigs, rock loading machines.

Mining: Mobile crushers, heading machines, transport equipment.

Others: Construction robots, forestry machinery, agricultural machinery, etc.

5. One-Stop Solution

MAGEON has a complete product category, providing one-stop procurement services for undercarriages and related components, including rubber track undercarriages, steel track undercarriages, track rollers, top rollers, front idlers, sprockets, rubber track pads, steel tracks, etc. With competitive prices and comprehensive service, we help customers save procurement time and costs.

6. Customization Service

MAGEON provides comprehensive customization services according to customer equipment requirements, including:

• Load Capacity: Customizable from 1 to 15 tons

• Undercarriage Dimensions: Customized to machine mounting requirements

• Track Width: Adjustable

• Drive Type: Hydraulic drive, matched to customer hydraulic system parameters

• Color: Black or custom color

• Mounting Interface: Customized to machine mounting dimensions

• Drawing-Based Manufacturing: Customization based on customer drawings

7. FAQ

Q1: What is the load capacity range of this rubber track undercarriage?
A: The load capacity ranges from 1 to 15 tons, customizable according to machine weight.

Q2: What is the travelling speed?
A: The travelling speed is 0-2 km/h.

Q3: What are the undercarriage dimensions?
A: The undercarriage dimensions are 2250×300×535 mm (L×W×H), customizable upon request.

Q4: What equipment is it suitable for?
A: It is suitable for anchor rigs, water-well rigs, mini excavators, mini bulldozers, mini piling machines, mobile crushers, grilled slag machines, and other crawler construction machinery.

Q5: What is the difference between rubber tracks and steel tracks?
A: Rubber tracks provide traction while reducing damage to paved surfaces, suitable for operation on asphalt and concrete. Steel tracks offer higher load capacity and are suitable for uneven ground and heavy-duty applications. MAGEON can recommend the appropriate track type based on customer working conditions.

Q6: Is OEM/ODM customization available?
A: Yes. MAGEON provides OEM/ODM customization services. Customized design is available based on customer-provided mounting dimensions, load capacity, and working condition requirements.

Q7: What are the warranty and delivery times?
A: The warranty is 1 year or 1000 hours, whichever comes first. Estimated delivery is 20 days for 1 set, 30 days for 2-3 sets, and to be negotiated for more than 3 sets.
