1. Product Overview

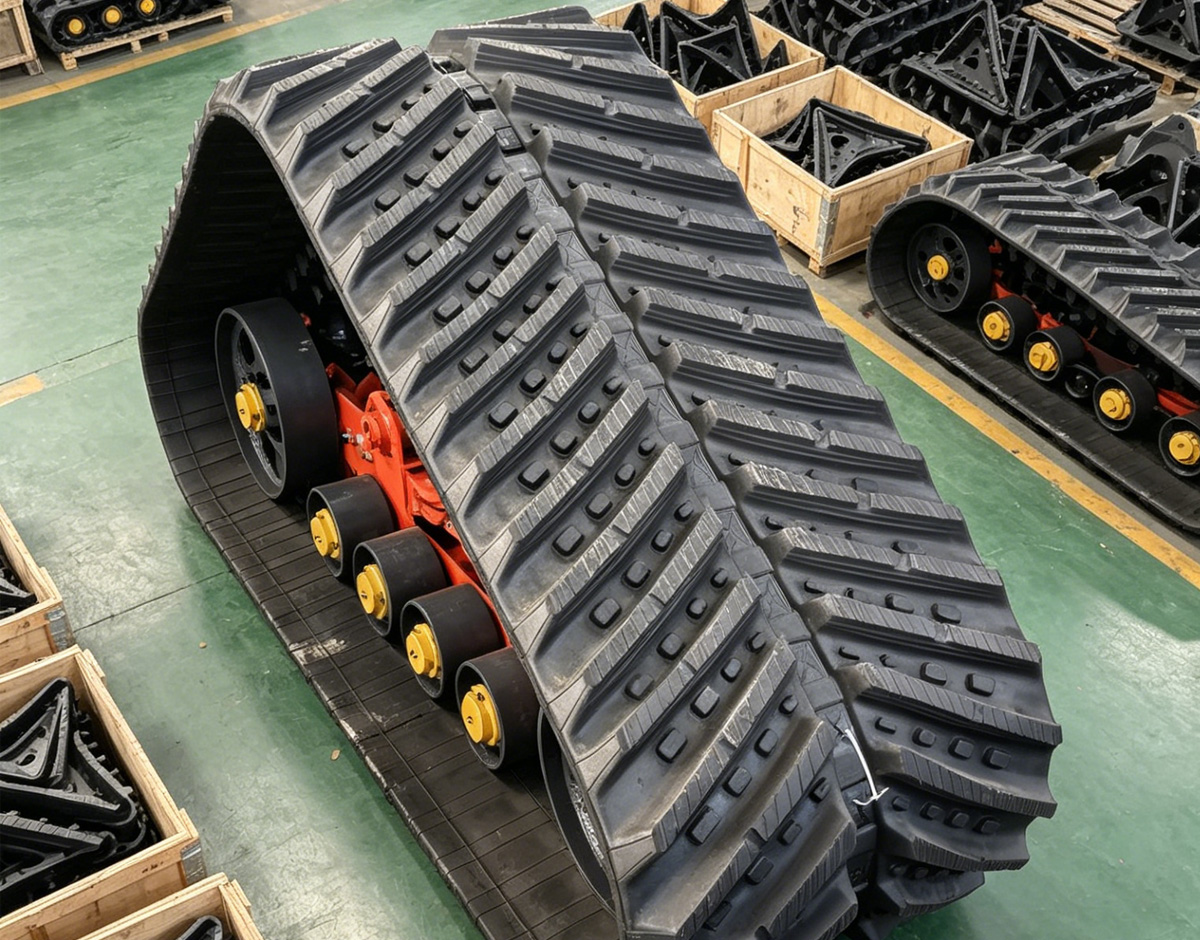

MAGEON designed a custom triangular rubber tracked undercarriage for a sugarcane harvester requiring two independent crawler units. The complete machine has a total load of approximately 5.5 tons, with each undercarriage supporting about 2.75 tons. Each crawler unit measures 1780×450×1161 mm and uses a triangular rubber track configuration for stable support and traction in agricultural working conditions. The design was developed around the harvester's overall dimensions, load distribution, and mounting requirements rather than using a standard crawler undercarriage.

2. Design Highlights

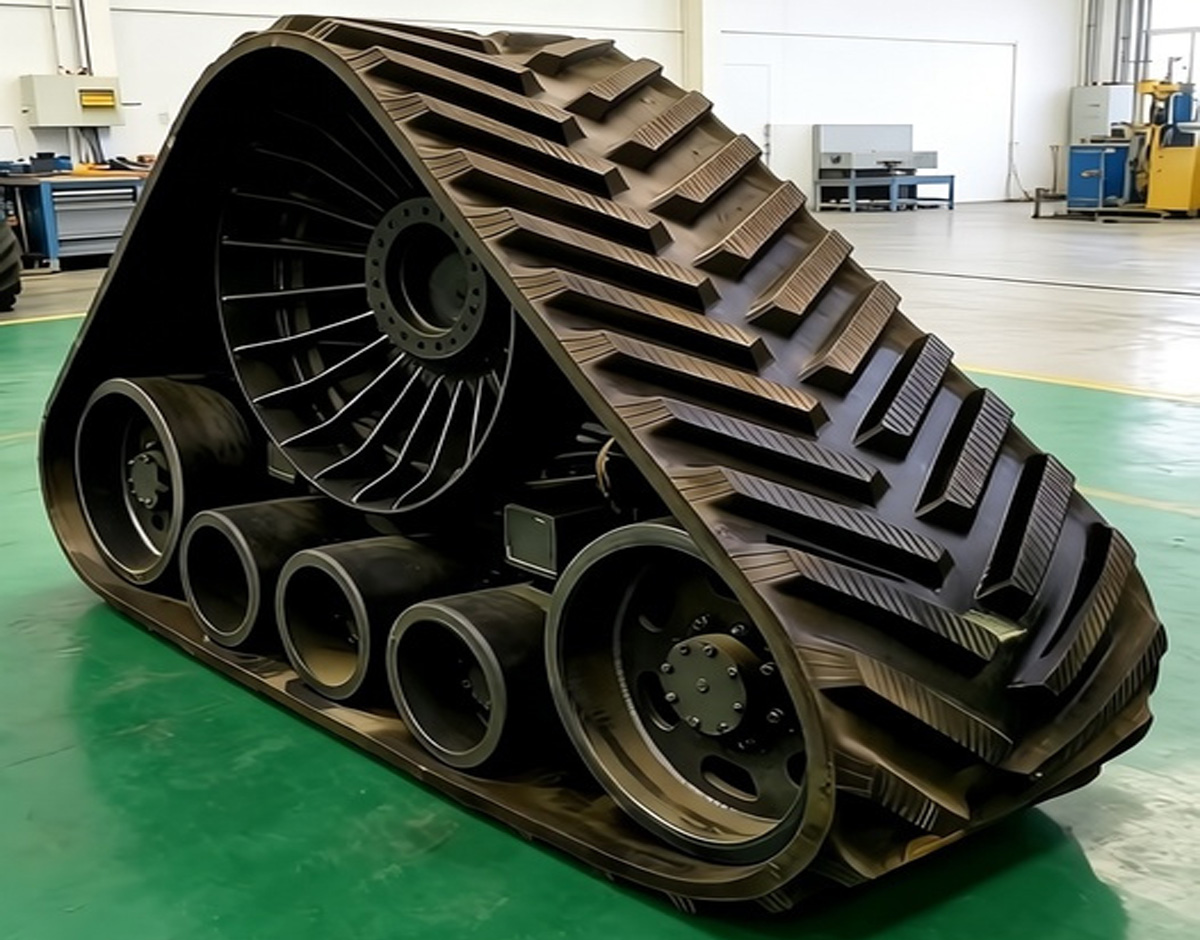

Triangular Track Configuration — Compact Structure and Stable Support
A triangular rubber track layout is adopted, providing a larger contact area and stable machine support while maintaining a compact undercarriage layout. This configuration provides a stable crawler footprint while allowing the undercarriage to fit within the harvester's available installation space.

Dual Independent Crawler Units — Coordinated Load Support and Travel
Two independent crawler units work together to support and move the approximately 5.5-ton machine. Each crawler unit supports approximately 2.75 tons, designed based on actual load distribution during operation.

Hydraulic Drive — Controllable Crawler Movement
The undercarriage uses a hydraulic drive system with a travelling speed of 1-4 km/h. It can be matched to the customer's hydraulic system parameters to ensure smooth travel and controllable start/stop.

Custom Mounting Structure — Matched to Machine Design
The upper mounting structure is customized to connect the crawler units with the sugarcane harvester frame. Mounting dimensions and connection points can be adjusted according to the machine design.

3. Undercarriage Structure

4. Design Process

5. Application Scenarios

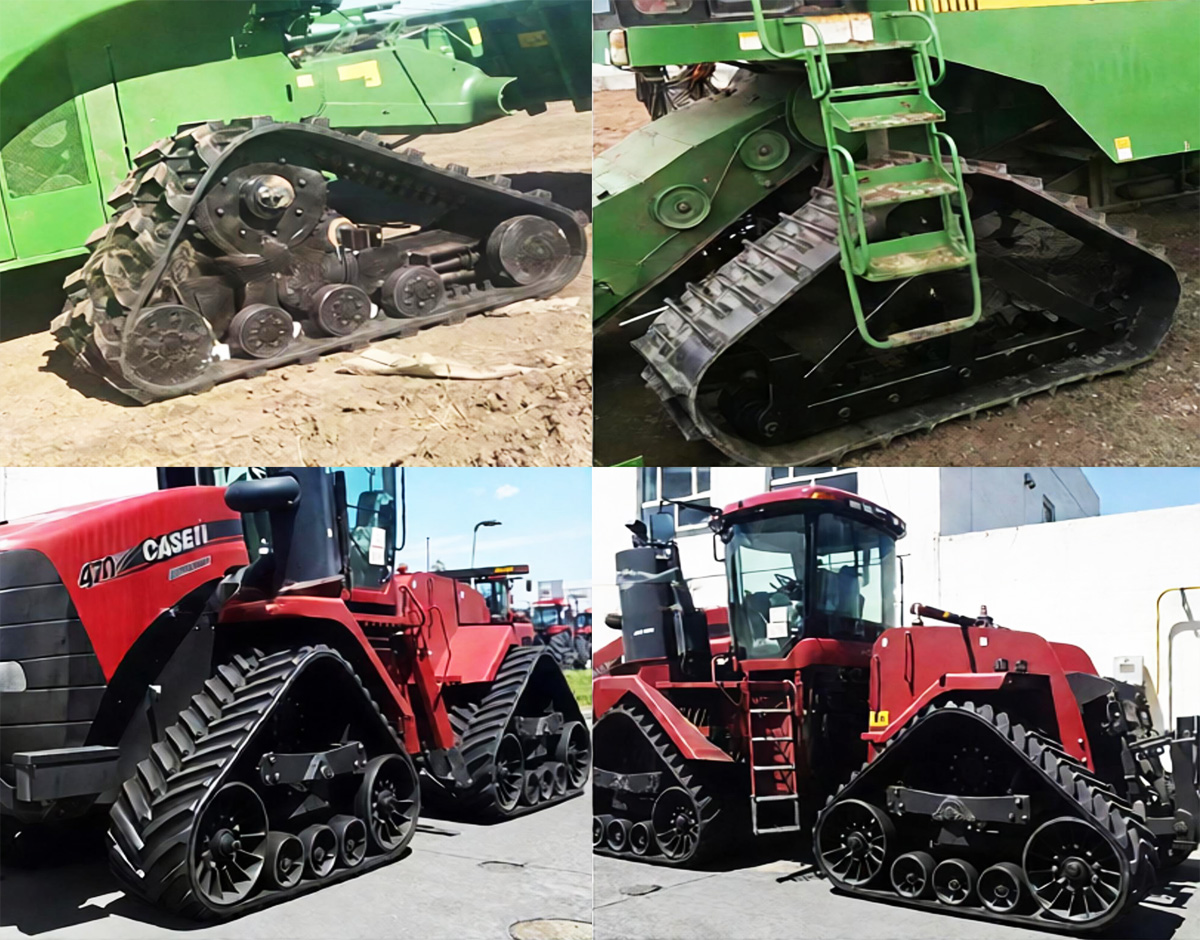

The triangular rubber tracked undercarriage can be used for crawler-based agricultural machinery where compact dimensions, stable support, and rubber-track mobility are required:

Sugarcane Harvesters: Custom crawler systems for sugarcane harvesting machines requiring two independent tracked units.

Agricultural Harvesting Machinery: The configuration can also be adapted for other specialized agricultural machines with similar load and dimensional requirements.

Custom Agricultural Equipment: MAGEON can develop crawler undercarriages according to machine weight, installation dimensions, track configuration, and hydraulic drive requirements.

6. Customization Service

MAGEON provides customization services according to customer equipment requirements, including:

• Load Capacity: Customized according to machine weight and load distribution

• Undercarriage Dimensions: Length customizable, width and height designed per customer requirements

• Track Configuration: Triangular rubber track or other configurations available

• Mounting Structure: Customized to machine frame and mounting dimensions

• Drive Type: Hydraulic drive, matched to customer hydraulic system parameters

• Color: Black or custom color

• Custom development from individual prototypes to small-batch production

7. FAQ

Q1: What is the total machine load of this triangular rubber tracked undercarriage?
A: The total machine load is approximately 5.5 tons, using a dual independent crawler unit design, with each crawler unit supporting approximately 2.75 tons.

Q2: What are the dimensions of each crawler unit?
A: Each crawler unit measures 1780×450×1161 mm (L×W×H). The length is customizable upon request.

Q3: What are the advantages of the triangular track configuration?
A: The triangular track configuration provides a larger contact area and stable machine support while maintaining a compact undercarriage layout, suitable for agricultural machinery with limited installation space.

Q4: What is the travelling speed?
A: The travelling speed is 1-4 km/h.

Q5: What equipment is it suitable for?
A: It is mainly suitable for sugarcane harvesters, and can also be adapted for other specialized agricultural machines with similar load and dimensional requirements.

Q6: Is custom development supported?
A: Yes. MAGEON can develop crawler undercarriages according to machine weight, installation dimensions, track configuration, and hydraulic drive requirements, supporting custom development from individual prototypes to small-batch production.

Q7: What are the warranty and FOB ports?
A: The warranty is 1 year or 1000 hours, whichever comes first. FOB ports are Shanghai, Ningbo, or Shenzhen.
