Track Undercarriage Wear Mechanisms & Scientific Maintenance Guide: MAGEON Explains How to Adjust Maintenance Strategies by Operating Conditions

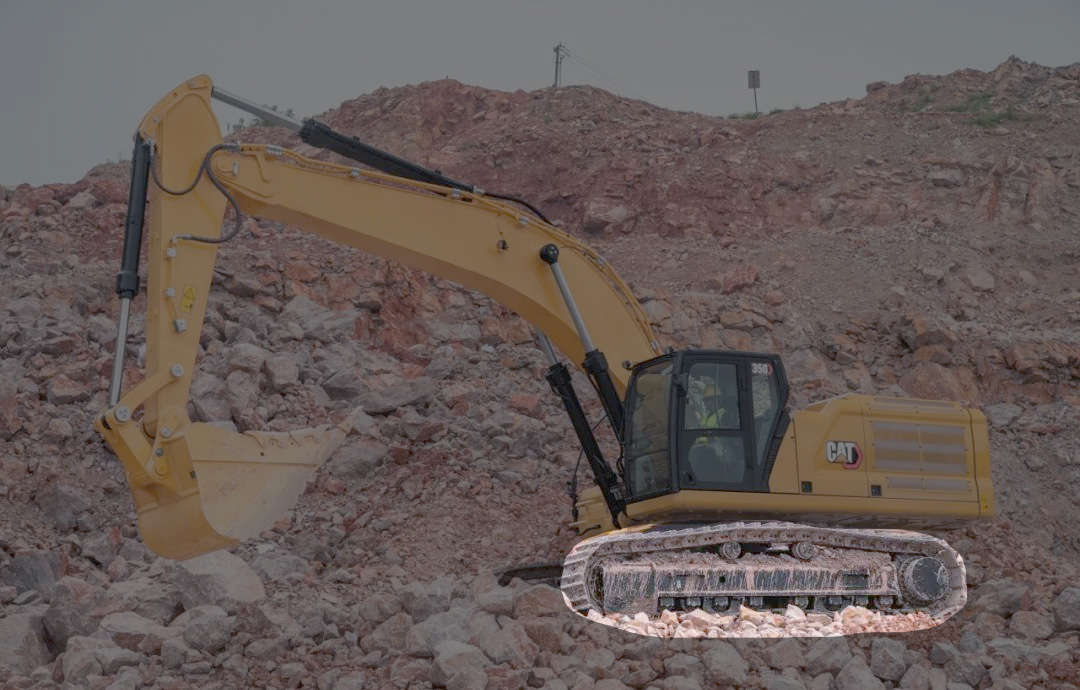

The same excavator may achieve less than 3,000 hours of undercarriage life in mining conditions, yet exceed 8,000 hours in municipal earthworks — behind this gap, beyond the difference in operating conditions themselves, whether the maintenance strategy matches the operating conditions is the key variable. As a globally leading manufacturer of Custom Tracked Chassis, MAGEON draws on hundreds of actual matching project experiences covering the full load range of 0.5 to 120 tons to provide a systematic analysis of undercarriage wear mechanisms, condition-adjusted maintenance strategies, and full lifecycle cost management methods — helping equipment managers advance from “one-size-fits-all maintenance” to “precision maintenance.”

1. Three Major Wear Mechanisms of Track Undercarriages: Understanding “Why It Fails”

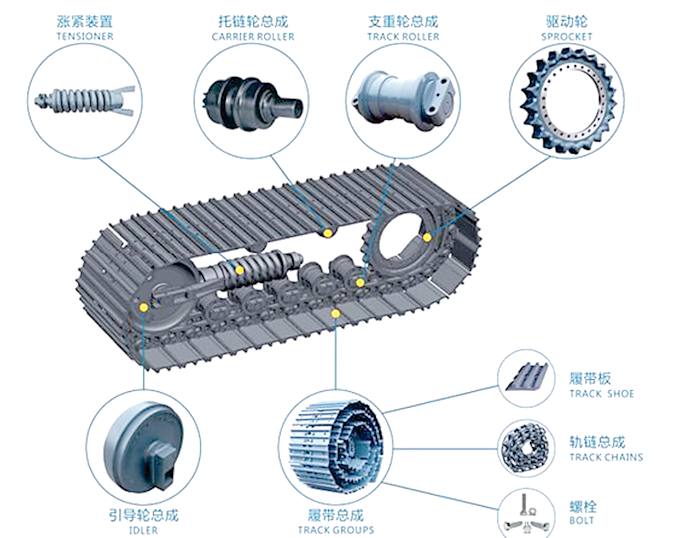

Before discussing maintenance methods, understanding the wear mechanisms of core undercarriage components is essential. Undercarriage wear is not caused by a single factor but by the combined effect of three mechanisms.

1.1 Polygonal Effect and Resonance — Vibration Wear

Track links are connected in multiple sections, each with a certain length, and the drive sprocket is gear-shaped. During excavator travel, a phenomenon known as the polygonal effect occurs: when the entire track shoe is parallel to the ground, the drive radius is smaller; when one side of the track shoe contacts the ground, the drive radius is larger. This periodic radius variation causes inconsistent travel speed, generating vibration.

When operating improperly, on uneven roads, with tension variations, or with mud and debris attached to track links, travel causes resonance of the track links, resulting in link jumping accompanied by abnormal noise. In severe cases, this accelerates undercarriage component wear and can even cause track derailment.

MAGEON Engineering Interpretation: The polygonal effect is an inherent characteristic of track travel and cannot be completely eliminated, but its impact can be controlled within acceptable limits through reasonable pitch design and maintaining proper track tension. Resonance is directly related to debris attachment and tension variation — a problem that can be avoided through maintenance.

1.2 Protective Layer Wear — Abrasive Wear

The materials of excavator track rollers, tracks and guards, drive sprockets, and carrier rollers are cast and forged from alloy steel with added wear-resistant materials. Although a protective film is formed on the metal surface through heat treatment, if operating improperly, with improper track tension, or with debris present, any metal protective film will be worn away, ultimately accelerating component wear.

Failure Chain: Debris ingress → Protective film wear → Substrate exposure → Accelerated wear → Component failure

MAGEON Measured Data: In mining gravel conditions, the drive sprocket tooth surface protective layer without protective measures is typically completely worn away within 800-1,200 hours, while MAGEON drive sprockets with high-frequency induction hardening can extend protective layer life to over 3,000 hours.

1.3 Floating Seal Ageing — Seal Failure

The internal components of excavator travel motors and reducers, track rollers, and carrier rollers require gear oil for lubrication. Floating seals are a type of non-contact seal that prevents oil leakage. Under normal conditions, they do not leak; however, when external mud, sand, and other debris accumulate excessively, debris enters the seal interior and causes seal damage, leading to oil leakage. Additionally, prolonged travel causes oil temperature to rise, ageing the floating seals and ultimately causing leakage.

MAGEON Maintenance Tip: Floating seal leakage is the primary signal of track roller and carrier roller failure. Once leakage is detected, it should be addressed within 24 hours; otherwise, bearings will rapidly burn out.

2. Adjusting Maintenance Strategies by Operating Conditions: Same Undercarriage, Different Methods

Different operating conditions place vastly different demands on track undercarriages. The following are condition-differentiated maintenance strategies summarised by MAGEON based on years of service experience:

2.1 Adjusting Track Tension by Road Conditions

This is the most easily overlooked yet most impactful aspect of undercarriage maintenance. Many operators use the same tension setting year-round, regardless of whether the working surface is soft soil or hard pavement — this is the primary human factor in shortened undercarriage life.

MAGEON Operating Recommendation: When working on soft soil or pebbles, appropriately loosen the track to ensure stable excavator travel; on flat hard surfaces, tighten the track for better traction. Regularly check track tension and wear, and replace severely worn tracks promptly to ensure normal operation.

2.2 Cleaning Frequency by Operating Conditions

The cleaning method recommended by MAGEON‘s service team: lift one side of the excavator track 30cm off the ground, run the track at high speed forward and reverse repeatedly, using vibration to loosen and remove debris. Wear safety goggles and a helmet during cleaning, and maintain a safe distance to prevent injuries from flying debris.

2.3 Adjusting Lubrication Strategy by Season

3. Full-Cycle Maintenance Operation Standards for Track Undercarriages

3.1 Daily Maintenance (Before and After Each Shift)

Pre-Shift Inspection:

• Check track tension — adjust based on the day‘s operating road conditions (refer to Chapter 2 tension strategy)

• Visually inspect track rollers, idlers, drive sprockets for oil leaks

• Check track shoe bolts for looseness

• Check undercarriage components for abnormal wear or breakage

Post-Shift Cleaning:

• Use vibration cleaning method to remove mud and debris from tracks and rollers

• Check floating seals for leaks (focus: track rollers and carrier rollers)

3.2 Periodic Maintenance

3.3 Specialised Inspection of Bearings and Gears

The key to maintaining an excavator undercarriage is to maintain the lubrication and cleanliness of the hydraulic system, electrical system, and undercarriage system to ensure excavator stability and durability. Bearing and gear inspection points include:

• Track roller bearings: Check floating seals for leaks, rotation smoothness

• Idler bearings: Check seals and lubrication condition, shaft end leakage

• Travel reducer: Check oil level, oil quality, abnormal noise

• Drive sprocket teeth: Check tooth wear, “hooking” wear

4. Five Major Operation Taboos Affecting Undercarriage Life

MAGEON Golden Operating Rules:

1. Avoid sharp turns, pivot turns, and high-speed travel on rough terrain

2. Avoid prolonged excavator travel

3. Check undercarriage components for abnormalities before each shift

4. Check track tension before each shift, adjust by road conditions

5. Clean debris from undercarriage components after each shift

5. Track Undercarriage Market Trends and Maintenance Economics

5.1 Global Undercarriage Market Continues to Grow

The global undercarriage market is in a period of steady growth. According to QYResearch statistics and forecasts, the global tracked undercarriage system market reached $13.36 billion** in 2025, expected to reach **$19.44 billion by 2032, with a CAGR of 5.5%. Among this, global steel crawler undercarriage revenue was approximately 48.77 billion RMB in 2025, projected to approach 68.35 billion RMB by 2032. The rubber track undercarriage market is expected to grow from $2.24 billion in 2025 to $2.43 billion in 2026, with a CAGR of 8.5%.

5.2 Maintenance Economics: 1 Yuan Maintenance = 5 Yuan Repair

MAGEON‘s data analysis based on hundreds of actual projects shows:

Core Conclusion: Establishing a scientific maintenance system can reduce the total lifecycle cost of a track undercarriage by 30%-40%.

6. MAGEON Full Lifecycle Undercarriage Services

As a globally leading manufacturer of Custom Tracked Chassis, MAGEON provides full lifecycle services from selection to maintenance:

The Rotary Drilling Rig Chassis and Drilling Rig Undercarriage also benefit from MAGEON‘s full lifecycle service system. MAGEON provides 10-100 ton heavy-duty chassis for rotary drilling rigs, equipped with large-diameter slewing bearings, reinforced track frames, and high-strength track chain designs, with supporting maintenance training and technical support.

7. Frequently Asked Questions (FAQ)

Q1: How should track tension be adjusted under different road conditions?

A: This is one of the most critical operations in undercarriage maintenance. When working on soft soil or pebbles, appropriately loosen the track to increase contact area, reduce ground pressure, and ensure stable travel; on flat hard surfaces, tighten the track for better traction, preventing tooth skipping and derailment. For rough gravel roads, medium tension is recommended to balance cushioning and traction. MAGEON recommends adjusting tension before each shift based on the day’s primary road conditions.

Q2: What is the polygonal effect of track links? Why does it cause vibration?

A: Track links are connected in multiple sections, and the drive sprocket is gear-shaped. During travel, the drive radius varies periodically — smaller when the track shoe is parallel to the ground, larger when one side contacts the ground. This radius variation causes inconsistent travel speed, generating vibration known as the polygonal effect. When tension is improper or debris is attached, vibration intensifies into resonance, potentially causing link jumping and track derailment.

Q3: Why is the drive sprocket protective layer worn away? How can life be extended?

A: The materials of drive sprockets, track rollers, tracks and guards, and carrier rollers are cast and forged from alloy steel with added wear-resistant materials, with heat-treated protective films on metal surfaces. However, improper operation (sharp turns, pivot turns), incorrect track tension, or gravel debris presence will gradually wear away the protective film and accelerate substrate wear. Life extension methods include: adjusting tension by road conditions, daily debris cleaning, and avoiding sharp turn operations. MAGEON drive sprockets use high-frequency induction hardening, with tooth surface hardness up to HRC 52-58, significantly extending protective layer life.

Q4: What causes floating seal leakage? How can it be prevented?

A: Floating seal leakage has two main causes: ①Excessive external mud, sand, and debris accumulation entering the seal interior causing damage; ②Prolonged travel causing oil temperature rise and seal ageing. Prevention measures include: daily post-shift debris cleaning (focusing on track roller and carrier roller areas), avoiding prolonged continuous travel, and regular seal inspection. Once leakage is detected, address within 24 hours; otherwise, bearings will rapidly burn out.

Q5: How often does a track undercarriage require maintenance?

A: MAGEON recommends: Before each shift — check track tension (adjust by road conditions) and undercarriage components；After each shift — clean undercarriage debris；Every 50 hours — apply lubricant to drive sprocket, track rollers, idlers, and other joints；Every 250 hours — perform four wheels one track wear inspection；Every 500 hours — check travel reducer oil and bearing/gear lubrication.

Q6: What safety precautions should be taken when cleaning undercarriage debris?

A: Wear safety goggles and a helmet, and maintain a safe distance to prevent injuries from flying debris. The vibration method is recommended (lift one track 30cm, run at high speed). For hardened mud that vibration cannot remove, use a pry bar or screwdriver; use high-pressure washing equipment when necessary, but avoid direct high-pressure spray at seals.

Q7: Which operating habits accelerate undercarriage wear?

A: Five major taboos: ①Sharp turns — severe lateral friction, accelerating track shoe and sprocket wear；②Pivot turns — one track bears full weight, overloading rollers and links；③High-speed travel on rough terrain — high-frequency impact on links, prone to fracture；④Prolonged continuous travel — oil temperature rise causing floating seal ageing and leakage；⑤Neglecting tension checks — causing derailment or abnormal wear.

Q8: What undercarriage parts does MAGEON supply?

A: MAGEON supplies a complete range of Undercarriage Parts, including: track chains (links, pins, bushings), track shoes, drive sprockets, track rollers, idlers, carrier rollers, track frames, tensioning systems, floating seals, and more. All components are manufactured to MAGEON‘s own technical standards and are compatible with mainstream host brands.

Q9: Can MAGEON customise dedicated chassis for rotary drilling rigs?

A: Yes. The Rotary Drilling Rig Chassis is one of MAGEON’s core products. MAGEON provides 10-100 ton heavy-duty chassis specifically designed for rotary drilling rigs, equipped with large-diameter slewing bearings, reinforced track frames, and high-strength track chain designs, ensuring stability during large-diameter, deep-hole drilling. Supporting maintenance training and technical support services are also provided.

Q10: What is the return on investment for undercarriage maintenance?

A: MAGEON‘s data analysis based on hundreds of actual projects shows: spending 5 minutes daily cleaning undercarriage debris can prevent floating seal leakage causing bearing burnout, with a cost ratio of approximately 1:10+; adjusting tension by road conditions can prevent link fracture and track derailment, with a cost ratio of approximately 1:20+. Establishing a scientific maintenance system can reduce the total lifecycle cost of a track undercarriage by 30%-40%.

8. About MAGEON

MAGEON is dedicated to delivering high-quality Steel Crawler Undercarriage and Rubber Track Undercarriage custom solutions to the global heavy machinery industry. With customisation capabilities covering the full load range of 0.5 to 120 tons and hundreds of actual matching project experiences, we tailor travel-drive solutions for every customer‘s specific operating conditions, providing full lifecycle services from selection to maintenance.

Our Core Capabilities:

• Load Range: Full-load custom solutions from 0.5 to 120 tons

• Undercarriage Types: Steel crawler undercarriage, rubber track undercarriage, telescopic crawler undercarriage, dedicated rotary drilling rig chassis

• Parts Supply: Complete range of Undercarriage Parts including track chains, track shoes, drive sprockets, track rollers, idlers, and carrier rollers

• Maintenance Support: Condition-differentiated maintenance training, installation guidance, fault diagnosis, spare parts support

From design to delivery, MAGEON stands for exceptional quality and dependable service, helping your equipment perform efficiently on the most challenging terrains.
